Workshop OverView
-
The Precision Measurement and Electrical Workshop focuses on two major themes: measurement and control. Basic measurement and electronic DIY can be achieved here, as well as complex motion control and prototype development. The workshop encourages students to combine theory with practice through hands-on experience.
-
Training Introduction
The Precision Measurement and Electrical Workshop regularly holds hands-on courses and training activities. The hands-on course open to all students, attracting complete beginner to participate, allowing students to experience the fun of making handicrafts while learning the working principles and development processes. The training activities are aimed at students who have related knowledge and hope to deepen their learning, helping to enhance their professional skills.
-
Training Introduction
VIEW MORE
Workshop EQUIPMENT
-
Dynamic Measuring Instrument
Equipment Introduction

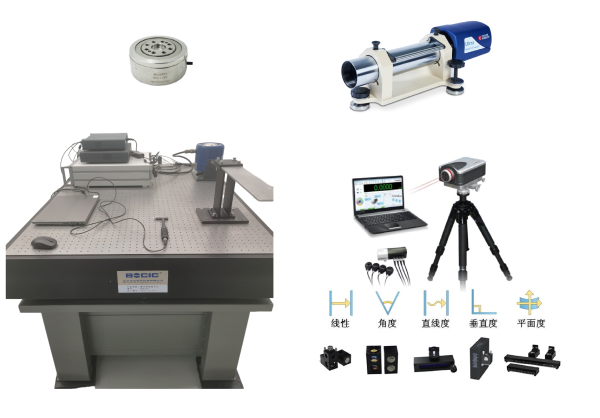

Measuring displacement, speed, acceleration, force, torque of moving parts (Includingvibration acquisition analyzer, Laser interferometer, photoelectric autocollimator, six-axis force sensor,etc)
-
Power Electronics and Motion Control RCP Experimental Platform
Equipment Introduction

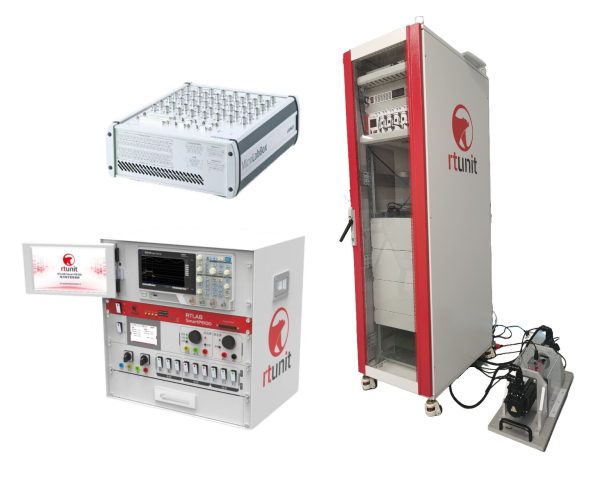

A comprehensive experimental platform for the development and verification of switching power supply and motor control algorithms using rapid control prototype (RCP)
-
Static Measuring Instrument
Equipment Introduction

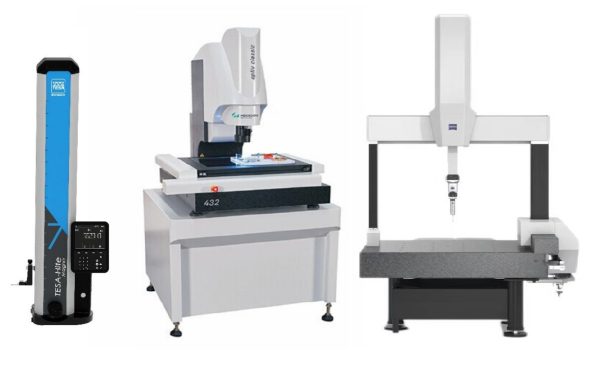

Measure the 3D coordinates and profile errors of part features(Including height gauge,2D optical image measuring instrument,coordinate measuring machine,etc)
Parameter
Measuring error:≤2.5 um
Maximum ranges:1000x1200x600mm -
Oscilloscope
Equipment Introduction
A measuring instrument that displays the dynamic changes of voltage signals.

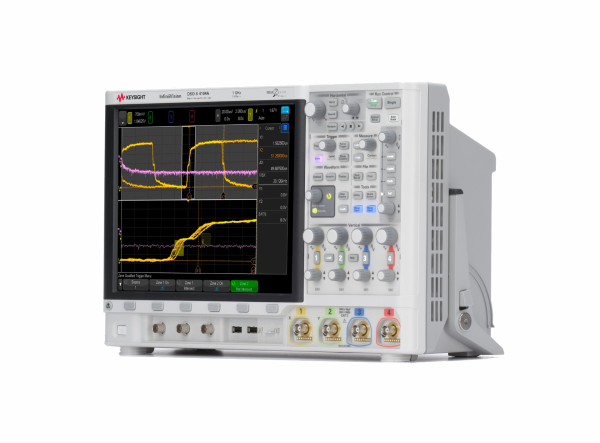

Oscilloscope No.1 (MDO34): 4-channel, 200MHz bandwidth, 10M storage depth, spectrum analyzer with independent channels;
Oscilloscope No.2 (RTH1004+RTH-B244): 4-channel, 500MHz bandwidth, 500k storage depth, 72Wh battery, 4-hour usage time;
-
Digital Multimeter
Equipment Introduction
Can measure various electrical quantities, including voltage, current, resistance, etc
Handheld multimeter (Fluke 18B+): 4.5 bits, minimum resolution of 0.1mV/0.1μA/0.1 Ω;

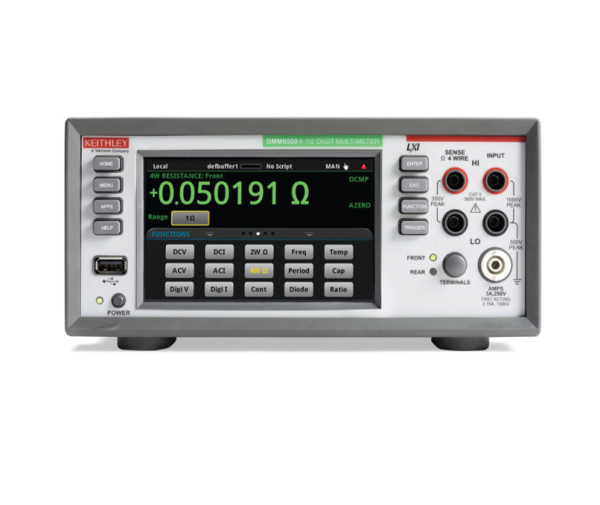

Desktop multimeter (DMM6500): 6.5 bits, minimum resolution 0.1 μ V/10pA/10μΩ; -
DC Power Supply
Equipment Introduction
Provide a constant voltage and current.
DC power supply No.1 (DSL200-15): maximum specification 200V/15A/3000W, can be used in series or parallel to expand voltage/current/power;
DC power supply No.2 (IT6722): maximum specification 80V/20A/400W, voltage and current changes can be edited;
